NOAA Ship Thomas Jefferson tests drone use for shoreline mapping

By, Lt. j.g. Matt Sharr, NOAA, and Lt. Charles Wisotzkey, NOAA

NOAA’s Office of Coast Survey and the National Geodetic Survey (NGS) recently conducted operational tests of small unmanned aerial systems — or drones — on board NOAA Ship Thomas Jefferson in support of survey operations conducted along the south coast of Puerto Rico. The tests show the potential of imagery from low-cost off-the-shelf drones to meet NOAA survey specifications for near-shore and shoreline feature mapping. This could replace traditional shoreline verification and mapping techniques used by NOAA hydrographic survey field units. Potential benefits of using drones for shoreline mapping include: improved data collection efficiency compared to data collection from small skiffs; more accurate feature investigation than traditional techniques; and, most importantly, removal of personnel from potentially dangerous situations (i.e. survey in close proximity to features being mapped).

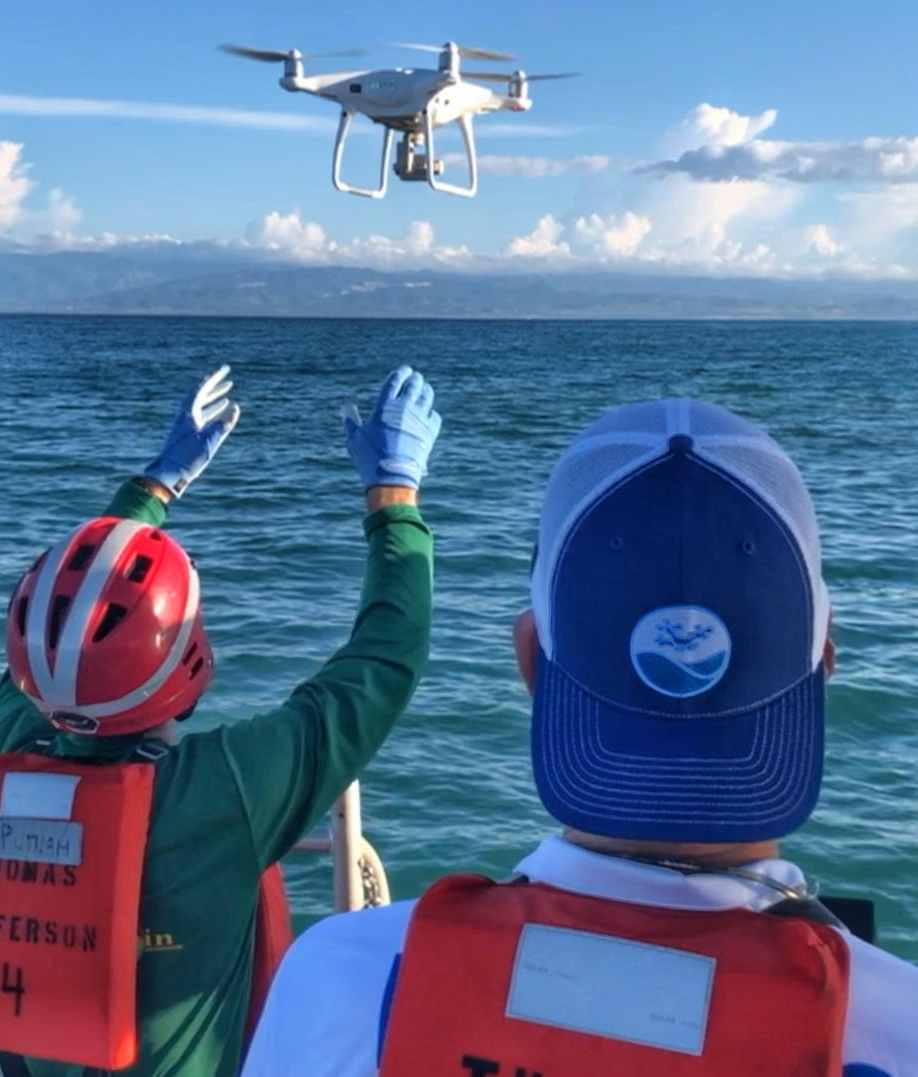

Drone deployment.
Lt. j.g. Matt Sharr (left) and Capt. Brian Taggart (NOAA, ret.) (right) deploy the DJI Phantom 4 drone from one of NOAA Ship Thomas Jefferson’s survey launches.

NOAA Ship Thomas Jefferson and hydrographic survey launch (HSL) 2903 taken from the drone used in testing.
NOAA Ship Thomas Jefferson and hydrographic survey launch 2903 taken from the drone used in testing.

NOAA Ship Thomas Jefferson hosted Capt. Brian Taggart (NOAA, ret.) from NGS’s Remote Sensing Division (RSD) and Lt. j.g. Matt Sharr from Coast Survey’s  Hydrographic Systems and Technology Branch (HSTB) while conducting survey operations in the vicinity of Ponce, Puerto Rico. The Ponce drone operations were a continuation of previous RSD and HSTB tests and training. The Ponce project area provided ideal testing grounds, including shallow water zones, dynamic and feature-rich shoreline environment, and clear tropical waters. The team mapped multiple test areas within the project area including Islas Caja De Muertos, Morrillito de Ratones (and associated reef), and Cayo Berberia.
NOAA Ship Thomas Jefferson's hydrographic survey launch 2903 near Islas Caja De Muertos, Puerto Rico.
NOAA Ship Thomas Jefferson’s hydrographic survey launch 2903 near Islas Caja De Muertos, Puerto Rico. Aerial drone operations over the island were conducted from the launch.

Launch 2904 along the south coast of Puerto Rico.
Launch 2904 along the south coast of Puerto Rico. The drone positioned several hulks/wrecks such as the one pictured along the approaches to a small local channel.

Using structure from motion to map the shoreline
So how do two-dimensional images collected from the drone become three-dimensional models for shoreline mapping? The process is called, “structure from motion.” Structure from motion processing techniques use sequences of overlapping geo-referenced imagery taken by the drone to create 3D geo-referenced models of environments. Simply put, it takes 2D pictures of features from different angles and then builds 3D models of the same features. Although the structure from motion technology may seem ‘black box’  (or unclear) since all computational work is accomplished with just a few button clicks, the technology itself is not as magic as it seems. Computations used to build 3D models from 2D imagery only require linear algebra, high resolution geo-referenced imagery, and a pivot-supported camera.
Photo taken from above Isla Caja De Muertos lighthouse.
Photo taken from above Isla Caja De Muertos lighthouse.

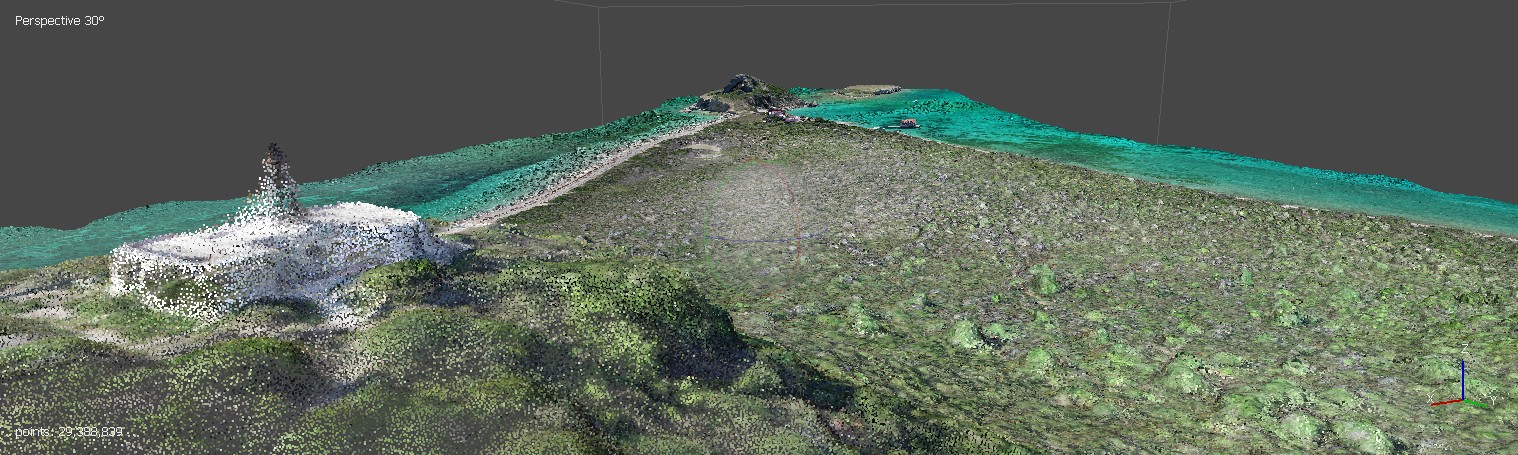

Isla Caja de Muertos lighthouse and view reconstructed using a SFM-generated dense point cloud.
Isla Caja de Muertos lighthouse and view reconstructed using a structure from motion-generated dense point cloud.

While structure from motion data processing is just math, collection of useful imagery data is an art. Environmental factors in nature must be considered when collecting data. Proper lighting and avoiding glare are important factors, just as in photography. Additionally, wind can make the water surface visually impenetrable, and high wind speeds can ground operations. Adjusting for these factors made the project a learning experience and provided a feasibility test.
The drone and positioning techniques
The team used a DJI Phantom 4 quadcopter-style aerial drone for testing. The camera mounted on the Phantom 4 was motion-stabilized and captured ultra high definition video. Additionally, an integrated Global Navigation Satellite System (GNSS) receiver was used to achieve positioning, and embedded the position of the drone into each image captured by the camera.
Lt. j.g. Matt Sharr holding the DJI Phantom 4 during a concept of operations brief for Lt. Cmdr. Meghan McGovern.
Lt. j.g. Matt Sharr holds the DJI Phantom 4 drone during a concept of operations brief for Lt. Cmdr. Meghan McGovern, acting commanding officer of NOAA Ship Thomas Jefferson during the period of test operations.

Raw GNSS data were not recorded on this particular platform, so post-processed position solutions were not available. However, horizontal and vertical accuracies of test datasets were within one to two meters of physical locations. In the future, various field techniques and higher quality positioning may improve position accuracy.
Test results
Over 6000 images (about 43 gigabytes of imagery data!) were collected from 29 flights at five unique test areas within the project area. The test areas provided a significant sample of unique feature types including rocks, islets, shipwrecks, reefs, mangroves, and man-made structures, all of which are represented in the data set.
The tests were highly successful and all aerial drone operations were performed safely without any significant technical issues. The tests were also successful from a logistics and planning perspective as neither NGS nor Coast Survey had previously flown DJI airframes from NOAA ships or launches, and no clear procedure existed for obtaining all required clearances.  This project produced a planning workflow to allow similar missions to occur.
The future of aerial drone operations from NOAA vessels
The use of aerial drones to collect structure from motion data is an important new tool in NOAA’s hydrographic data collection toolbox. The concept of operations demonstrated in this project can greatly improve field data collection and safety. The tool has limits of course and must be matched to the job. These systems are not the only platforms for littoral zone data collection and will not replace manned aircraft anytime soon. Environmental conditions impact mission planning, execution, and data quality. However, the utility of drones for survey operations was demonstrated despite these considerations.
Aerial drones will be an important asset for NOAA operations. They will be particularly useful for navigation response teams to rapidly and safely acquire data used for critical decision making. Drones equipped with an infrared/thermal imagery could also greatly aid in search and rescue for man overboard scenarios. The possibilities are far reaching and exciting!
Adoption of aerial drones for NOAA hydrographic projects is not far off.  Although drone operations are not fully integrated into regular NOAA operations, NOAA hydrographic platforms may deploy unmanned systems for shoreline work as early as next field season.  HSTB and RSD’s operational tests on NOAA Ship Thomas Jefferson demonstrated progress toward developing a workflow ensuring safe operations, compliant with all applicable regulations. These capabilities and benefits must now be demonstrated to the wider hydrographic community, and Coast Survey looks forward to facilitating this process in the near future.
Any mention of a commercial product is for informational purposes and does not constitute an endorsement by the U.S. Government or any of its employees or contractors.
